High-speed 3D Five-axis Bevel Laser Tube Cutting Machine

G170K semi-automatic

China QianGang is specialized in the production and manufacturing of laser pipe cutting machines. It has accumulated profound technical strength and rich experience in this field. Among them, the G170K semi-automatic high-speed three-dimensional five-axis laser pipe cutting machine can quickly and accurately complete the pipe cutting tasks. It has high cutting accuracy, smooth and flat cutting edges, greatly improving product quality and production efficiency. It is an effective assistant for pipe processing enterprises to achieve efficient production and enhance market competitiveness.

    Contact us
    product details

    Product Detail

    As a factory deeply engaged in the production of laser pipe cutting machines, we have always been committed to providing advanced cutting solutions for various industries. We are well aware that each customer's demands are unique, and therefore, we also offer customized laser equipment services to fully meet your individualized needs. It is worth mentioning that our flagship product, the G170K semi-automatic high-speed three-dimensional five-axis slot-type laser pipe cutting machine, with its outstanding performance, has been widely applied in numerous industries such as hardware furniture manufacturing, aluminum window and door processing, automotive parts production, and mobile phone bracket manufacturing, earning high recognition and trust from customers.

    Product introduction

    The G170K semi-automatic trough-type laser pipe cutting machine is specially designed for cutting various pipes at a 45-degree angle, precisely meeting the complex processing requirements of pipes. In terms of the power core, its laser power can be flexibly adjusted, ranging from 1500 to 3000 watts. Whether it is the fine cutting of thinner pipes or the efficient cutting of slightly thicker pipes, it can handle them with ease. What is worth mentioning is that the automatic loading and unloading platform equipped with this equipment is a major innovative highlight. In actual production, it not only significantly improves production efficiency, reduces the processing cycle of pipes, but also lowers labor costs due to the automated operation, bringing higher economic benefits to the enterprise.
    1

    Features

    1.The semi-automatic feeding rack equipped with this device features a simple structure and convenient operation, which significantly reduces time and labor costs.
    2.Its working efficiency is extremely high, reaching 5 to 6 times that of ordinary pipe cutting machines.
    3.It can flexibly adjust the bevel angle to 45°, effectively enhancing the stability of welding.
    4.It can achieve one-time cutting and forming of ±45° sharp-angle chamfers.

    Application

    This G170K semi-automatic inclined surface laser pipe cutting machine is applicable to numerous metal pipe processing fields such as hardware accessories, hardware furniture, bathroom fittings, medical equipment, sports equipment, automobile manufacturing, architectural decoration, 3C products, elevator equipment, etc.
    • 图片9

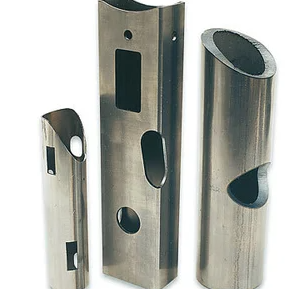

    • 图片3
    • image9
    • 图片11

    Parameters

    Model

    G170K

    Laser Power (W）

    1500/2000/3000

    Cutting range (MM)

    Circumference:10-170

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6250

    Machine size (MM)

    L*W*H:8874*1720*2175

    Body + Rack size (MM)

    semi-Automatic(L*W*H):8874*2170*2175

    Machine weight（kg）

    ≈3.2

    Acceleration(G)

    ≈1.3

    Tailings  length(MM)

    ≈80

    Samples

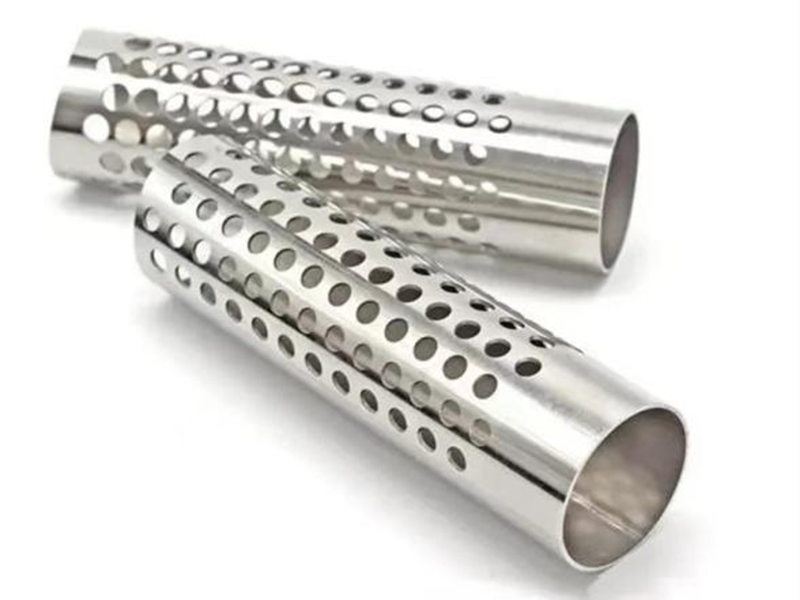

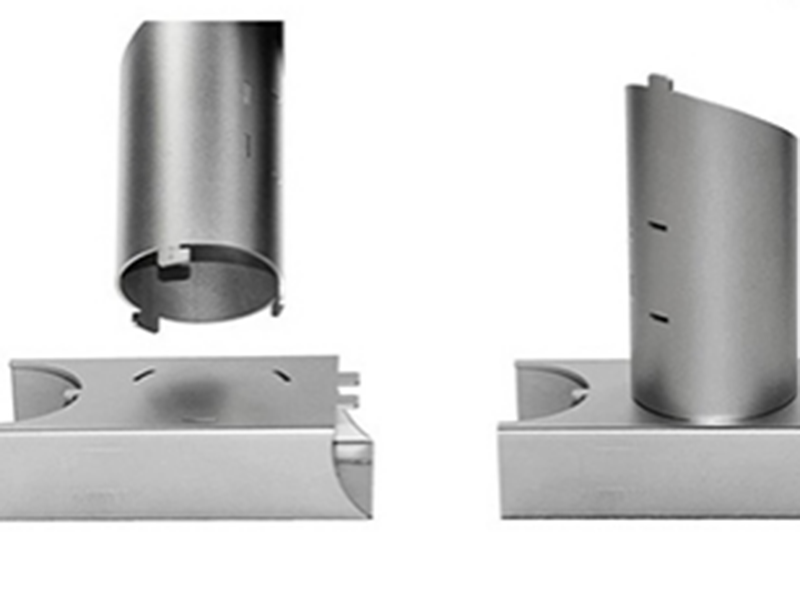

    • 图片6

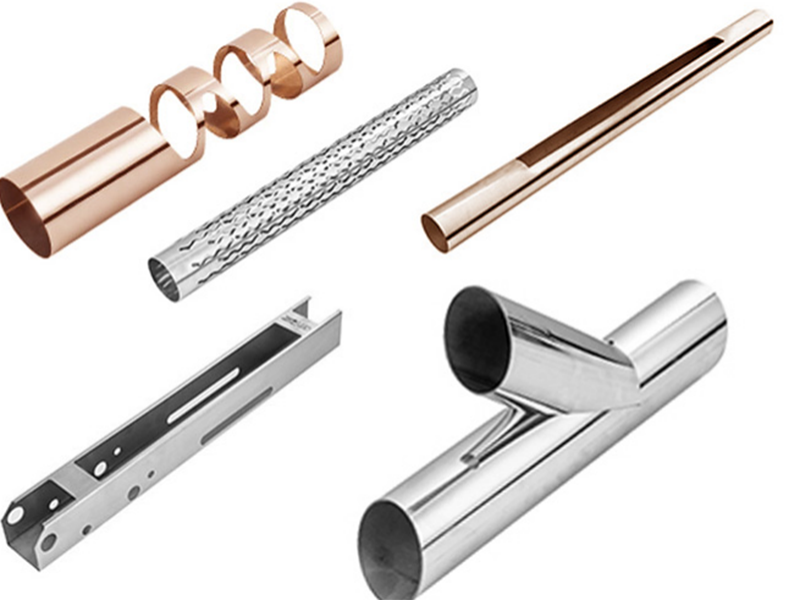

    • 图片13

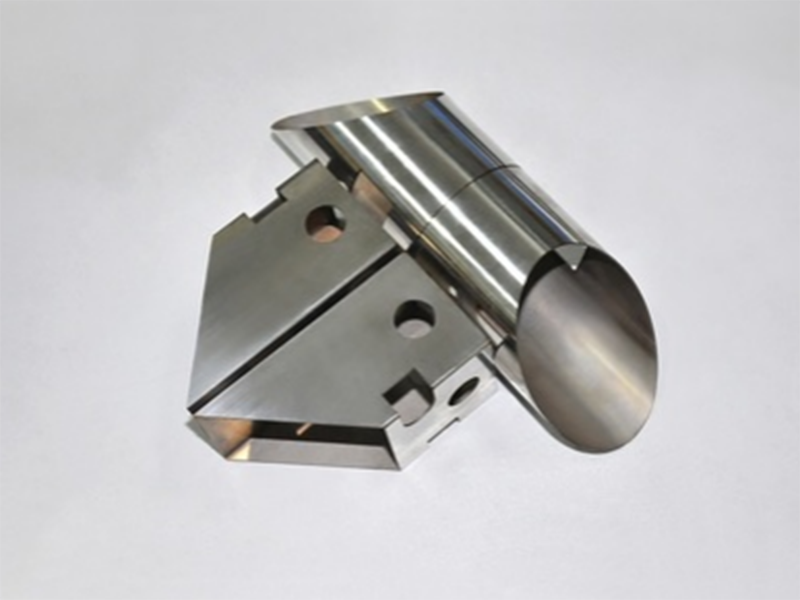

    • 图片8

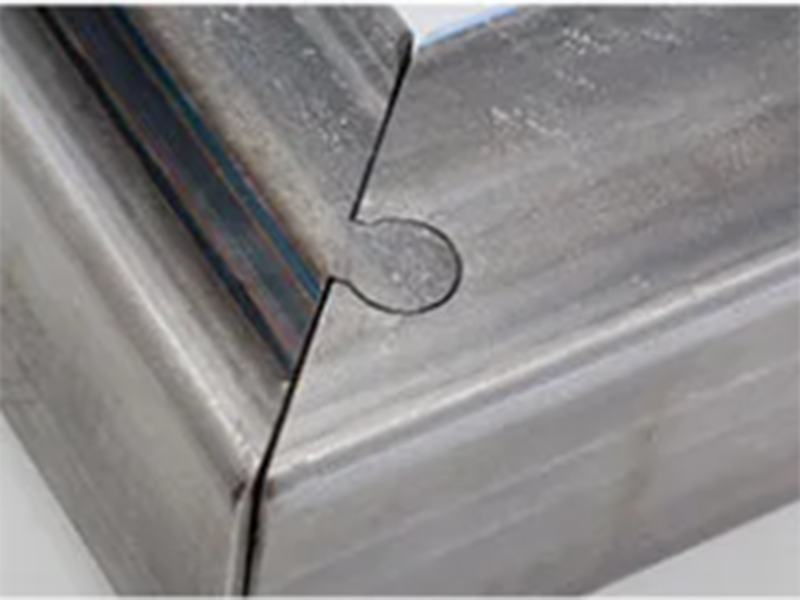

    • 图片7

    Structures

    • 图片91 (9)

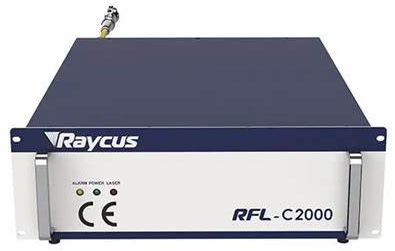

      1.Laser source: Max/Raycus

    • 图片11

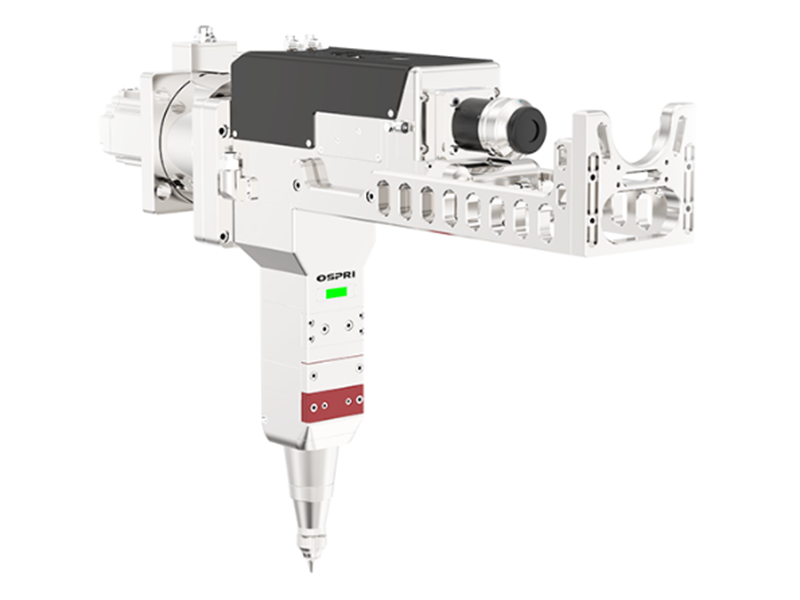

      2.Laser cutting head:  Ospri

    • product-description13

      3.Operating system: Bochu FSCUT3000

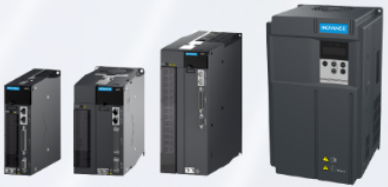

    • 1 (14)1 (15)

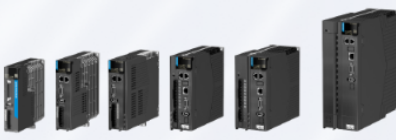

      4.Servo motors: Huichuan/Delta

    tp12

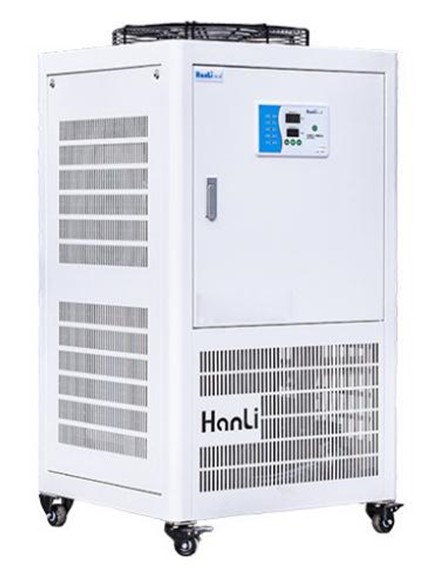

    5. Water chiller: Hanli

    Details

    G170K semi-automatic Laser pipe Cutting Machine Equipment  parameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    Ospri

    Water cooling unit

    Hanli

    Chuck

    Beut Precision  / Taiyuan Precision

    Servo motor

    Huichuan

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-170 MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

    Automatic : 6000- 6250mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.02mm

    Maximal acceleration

    1.3G

    Voltage

    380V/50Hz/60Hz

    Total weight of equipment

    About 3.2 tons

    Equipment dimension

    Length8874*width 2949*height2175mm
