High-speed 3D Laser Tube Cutting Machine Equipment

G170D fully-automatic



China QianGang is a highly innovative laser equipment factory. The G170D flat push fully automatic laser pipe cutting machine features high efficiency, high quality and high reliability, bringing high value to users. It can be connected to an automated production line for production, which helps to improve production efficiency.

    Contact us
    product details

    Product Detail

    We are a professional manufacturer of laser cutting machines. The main products include high-stereoscopic five-axis multi-functional laser cutting machines, fully automatic laser cutting machines, Angle laser cutting machines, etc. We can customize laser equipment according to your requirements. Our company's G170D push-type fully automatic laser pipe cutting machine has been widely applied in industries such as door and window guardrails, stair railings, and bathroom lighting.

    Product introduction

    The G170D push-type fully automatic laser pipe cutting machine has a laser power range of 1500 watts to 6000 watts and is suitable for cutting various medium and small-sized pipes. The reinforced chuck reduces the overtravel of the front chuck, saving a great deal of waste.
    封面图

    Features

    1.The fully automatic feeding rack saves time and effort, has a simple structure and is easy to operate
    2.The efficiency is 5 to 6 times that of ordinary pipe cutting machines.
    3. The blind zone of the tail material is small, which saves materials and reduces post-processing
    4. This equipment shortens the remaining tail section, significantly reducing material loss
    5. Quick cutting: Standard integrated height regulator for convenient deformation of the pipe

    Application

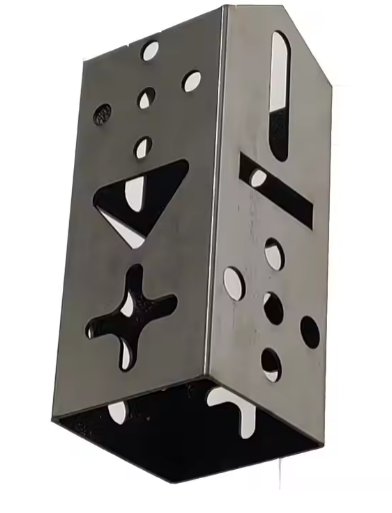

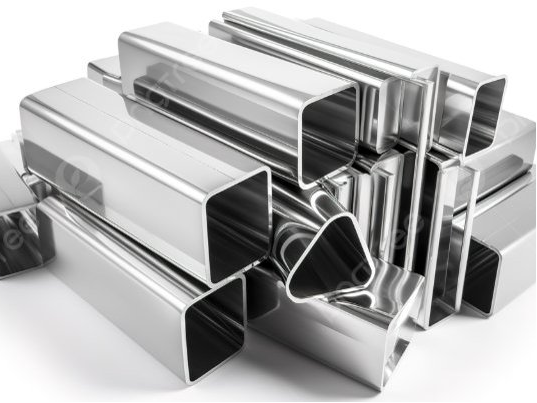

    Machine tool G90Z manual direct cutting laser pipe cutting machine equipment is suitable for metal parts, furniture, doors and Windows guardrail, medical equipment, sports equipment, automotive field, building decoration, elevator equipment and many other metal pipe processing fields.
    • 图片1
    • 图片3

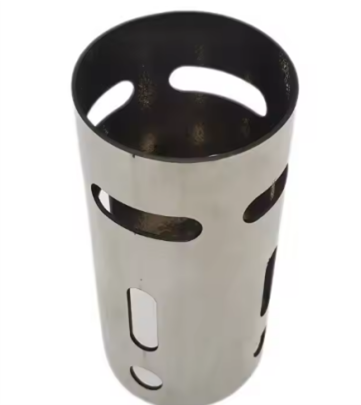

    • tp4
    • 图片4

    Parameters

    1500/2000/3000

    Model

    G170D

    Laser Power (W）

    1500/2000/3000/6000

    Cutting range (MM)

    Circumference:10-170

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6250

    Body + Rack size (MM)

    Manual(L*W*H):8856*2886*2172

    Machine weight（kg）

    ≈2.5

    Acceleration(G)

    ≈1.3

    Tailings  length(MM)

    ≈80

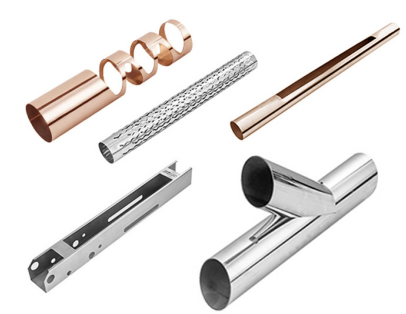

    Samples

    • 图片5
    • 图片6
    • 图片7
    • 图片8

    Structures

    • 图片9

      1.Laser source: Max/Raycus

    • product-description7

      2.Laser cutting head: RayTools / Ospri/Bochu

    • product-description13

      3.Operating system: Bochu FSCUT3000

    • 图片13

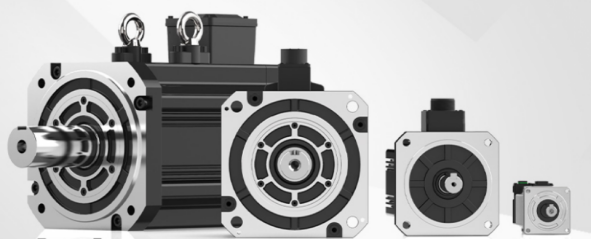

      4.Servo motors: Huichuan/Delta

    tp12

    6.HANLI Water Chiller

    Details

    G170D Laser Tube Cutting Machine Equipment  parameter

    Parameter

    Supplier

    Laser source

    Reci

    Laser head

    Raycus /Ospri

    Water cooling unit

    Hanli

    Chuck

    Beut Brand

    Servo motor

    Hechuan

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-170MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

    Automatic : 6000- 6250mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.02mm

    Maximal acceleration

    1.3G

    Voltage

    380V/50Hz

    Total weight of equipment

    About 2.5 tons

    Equipment dimension

    Length8856*width2886*height2172mm
