Laser Tube Cutting Machine Equipment
Product Detail
Product introduction
Features
2. High cutting precision, accurate size, smooth cutting edge, no burrs or bevel, high verticality of the cutting surface, conducive to subsequent processing and assembly.
3. The configuration is a first-line brand, high safety performance. Bochu system: equipped with advanced numerical control system, the operation interface is simple and intuitive, and does not require complex operating skills and experience.
4. Excellent cutting quality. No residue. In the cutting process, the slag produced is very little, and the slag is easily blown away by the auxiliary gas without remaining in the cutting edge, thus ensuring the cleanliness of the cutting edge.
Application
Parameters
1500/2000/3000
|
Model |
G90Z |
|
Laser Power (W） |
|
|
Cutting range (MM) |
Circumference:10-90 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6500 |
|
Machine size (MM) |
L*W*H:3578*1700*1950 |
|
Vehicle Body + frame size (MM)) |
Manual(L*W*H):3578*1700*1950 |
|
Machine weight（kg） |
≈2.5 |
|
Acceleration(G) |
≈2.0 |
|
Tailings length(MM) |
≈40 |

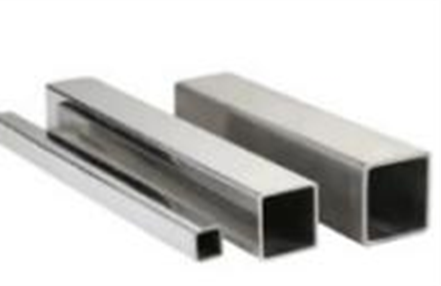

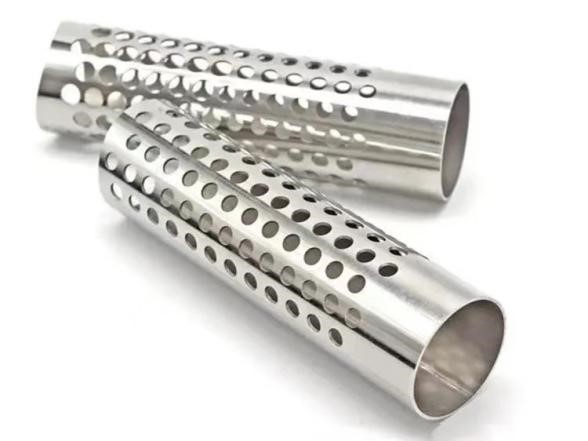

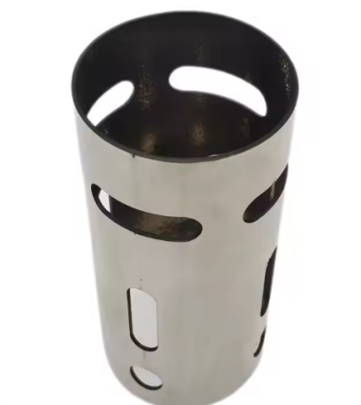

Samples
Structures
-
1.Laser source: Max/Raycus
-
2.Laser cutting head: RayTools / Ospri/Bochu
-
3.Operating system: Bochu FSCUT3000
-
4.Servo motors: Huichuan/Delta
5. Chuck: Front/Back
6.HANLI Water Chiller
Details
|
G90Z manual beveling Laser Tube Cutting Machine Equipment parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
Ospri/ Raytools/Bochu |
|
Water cooling unit |
Hanli |
|
Clamping plate |
Changzhou Beut |
|
Servo motor |
Huichuan/Delta |
|
Guide rail slider |
Taiwan TBI |
|
Processing range of pipe materials |
10-90MM |
|
Configuration of the material shelves |
Optional receiving rack (2 pneumatic supports as standard) |
|
Minimum cutting length |
1mm |
|
Loading length |
Automatic : 6000- 6250mm |
|
Thickness of cutting material |
Depending on laser power (8.0mm thickness per 3000W) |
|
Cutting slit width |
0.1-0.15mm |
|
Machine tool repeated positioning accuracy |
±0.02mm |
|
Maximal acceleration |
2.0G |
|
Voltage |
380V/50Hz/60Hz |
|
Total weight of equipment |
About 2.5t |
|
Equipment dimension |
Length3578*width 1700*height1950mm |
