Laser Tube Cutting Machine Equipment
Product Detail
Product introduction
Features
1. The cutting efficiency is up to 2.0G, which is 5-6 times higher than that of the average pipe cutting machine.
2. The cutting accuracy is high, with precise dimensions, smooth and flat cutting edges without burrs or slopes, and high verticality of the cutting surface, which is conducive to subsequent processing and assembly.
3. The safety performance is high. The BOCU system: Equipped with an advanced numerical control system, the operation interface is simple and intuitive, and no complex operation skills or experience are required.
4.The cutting quality is excellent. There is no residual slag. During the cutting process, very little slag is produced, and the slag can be easily blown away by the auxiliary gas without remaining at the cutting edge, thus ensuring the cleanliness of the cutting edge.

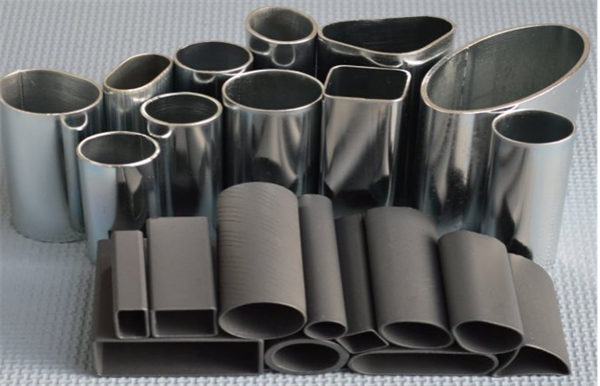

Application
Parameters
|
Model |
G90Z |
|
Laser Power (W） |
1500/2000/3000 |
|
Cutting range (MM) |
Circumference:10-90 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6500 |
|
Machine size (MM) |
L*W*H:8408*1650*2100 |
|
Vehicle Body + frame size (MM)) |
Semi-automatic(L*W*H):9300*1900*1950 |
|
Machine weight（kg） |
≈2.5 |
|
Acceleration(G) |
≈2.0 |
|
Tailings length(MM) |
≈40 |

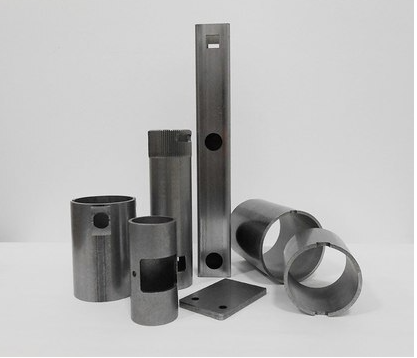

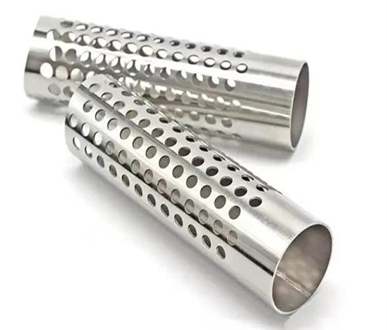

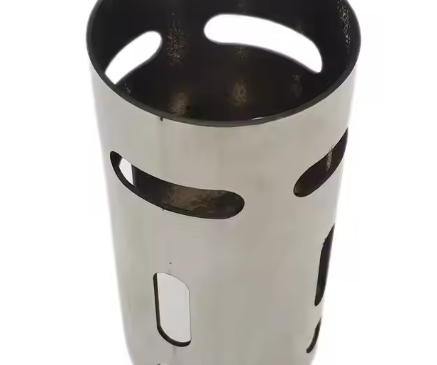

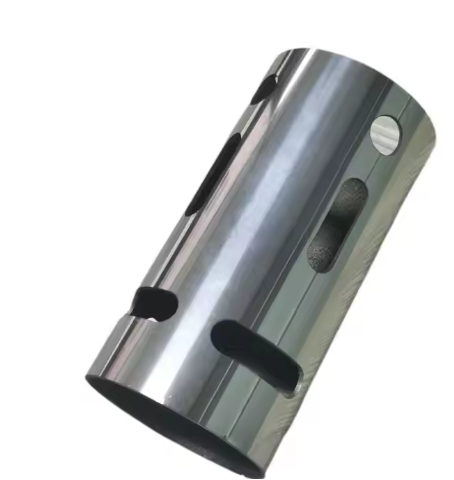

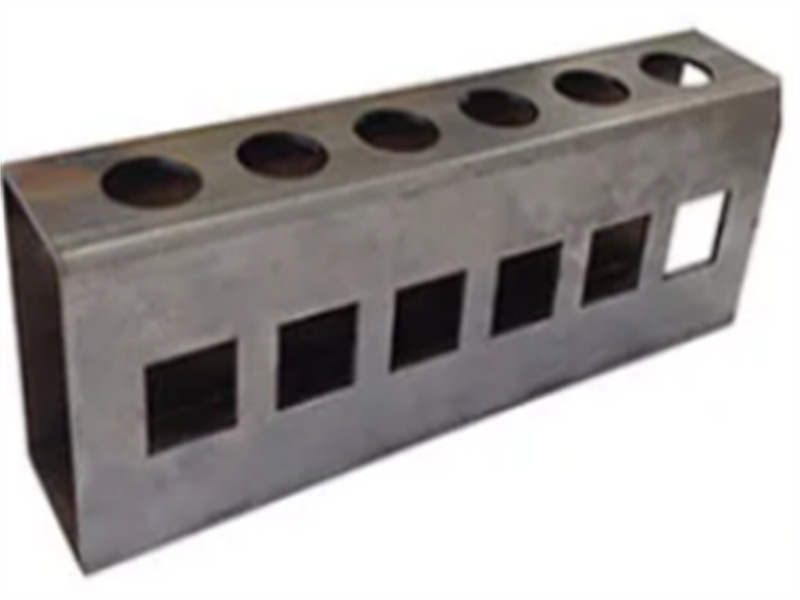

Samples
Structures

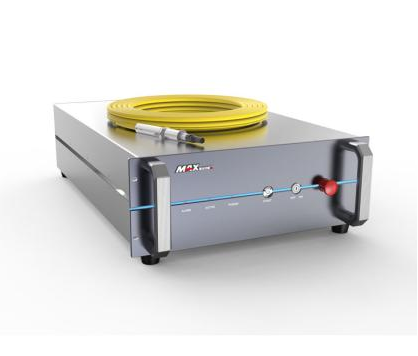

1.Laser source: Max/Raycus

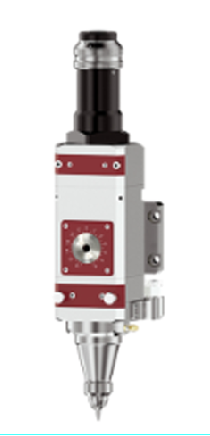

2.Laser cutting head: RayTools / Ospri/Bochu

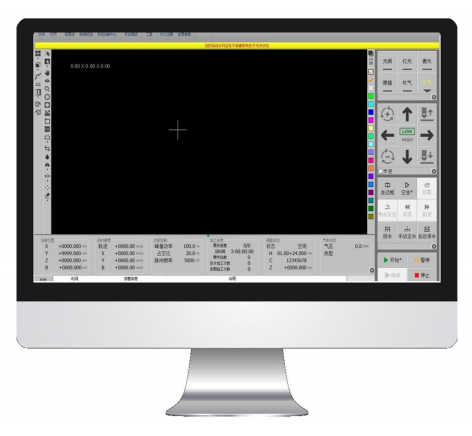

3.Operating system: Bochu FSCUT3000
4.Servo motors: Huichuan/Delta
5. Chuck: Front/Back

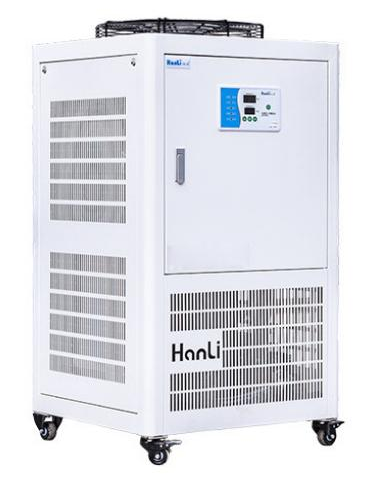

6.HANLI Water Chiller
Details
|
G90K semi-auto beveling Laser Tube Cutting Machine Equipment parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
Ospri/ Raytools/Bochu |
|
Water cooling unit |
Hanli |
|
Clamping plate |
Changzhou Beut |
|
Servo motor |
Huichuan/Delta |
|
Guide rail slider |
Taiwan TBI |
|

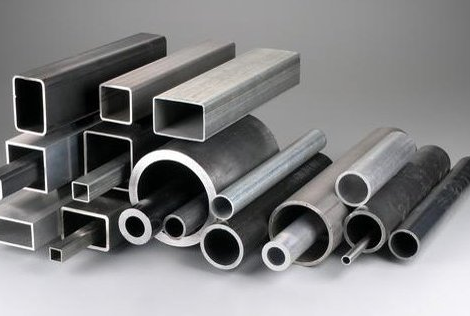

Processing range of pipe materials |
10-90MM |
|
Configuration of the material shelves |
Optional receiving rack (2 pneumatic supports as standard) |
|
Minimum cutting length |
1mm |
|
Loading length |
Automatic : 6000- 6250mm |
|
Thickness of cutting material |
Depending on laser power (8.0mm thickness per 3000W) |
|
Cutting slit width |
0.1-0.15mm |
|
Machine tool repeated positioning accuracy |
±0.02mm |
|
Maximal acceleration |
2.0G |
|
Voltage |
380V/50Hz/60Hz |
|
Total weight of equipment |
About 2.5 kg |
|
Equipment dimension |
Length9300*width 1900*height1950mm |
